Hardware Welding Solution

Wire Frame Welder

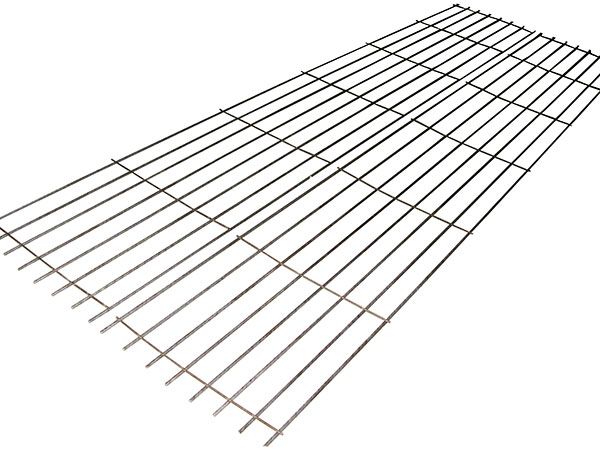

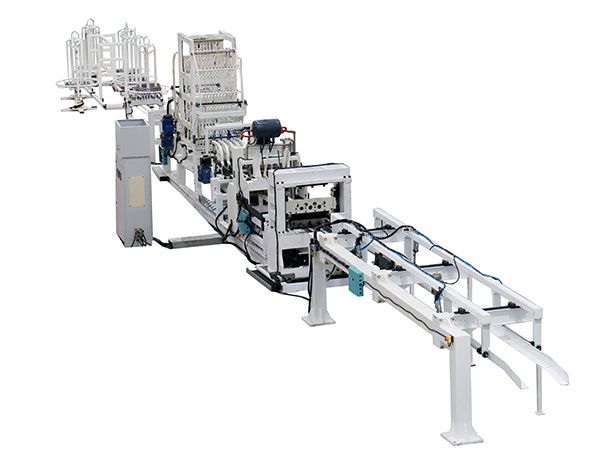

200KVA Automatic Multi Spot Welder with Wire Feeder for Preformed Wall Frame DN-200-16006

Model # DN-200-16006
Rated capacity KVA 200
Power supply V/Φ/Hz 380/3/50
Max. primary current A 400
Max. Short Circuit Current KA 38
Max. working pressure kN 1.6
Dimensions (LxWxH) mm 24500x3200x3100

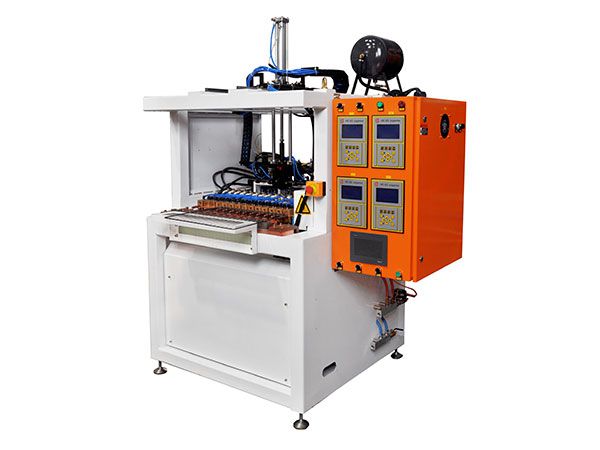

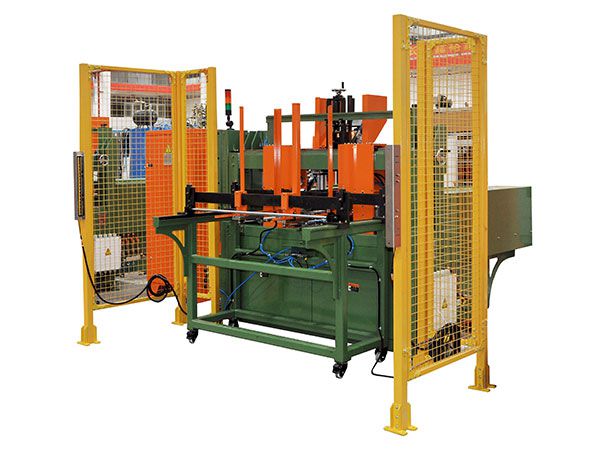

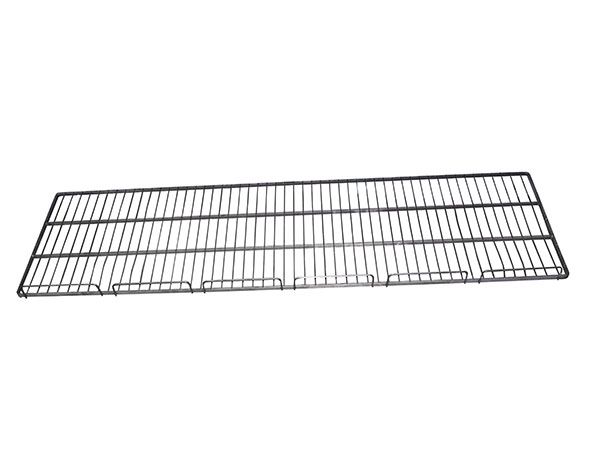

2x100KVA AC Press Welder for Refrigerator Wire Frame DN-200-18001

Model # DN-200-18001
Rated capacity KVA 2x100
Power supply V/Φ/Hz 380/3/50
Max. primary current A 188
Max. Short Circuit Current KA 20
Max. working pressure kN 4.6
Dimensions (LxWxH) mm 3136x2942x2170

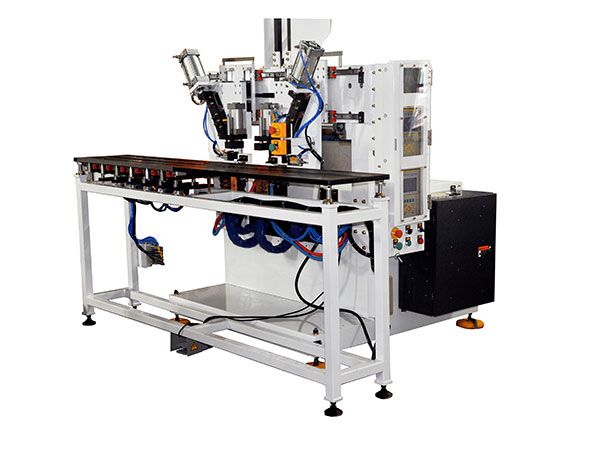

2x50KVA AC Press Welder for Refrigerator Wire Frame DN-100-17002

Model # DN-100-17002
Rated capacity KVA 2x50
Power supply V/Φ/Hz 380/3/50
Max. primary current A 134
Max. Short Circuit Current KA 14
Max. working pressure kN 3
Dimensions (LxWxH) mm 2200x1685x1818

220KVA MFDC Press Welder for Refrigerator Wire Frame DN-200-16005

Model # DN-200-16005
Rated capacity KVA 200
Power supply V/Φ/Hz 380/1/50
Max. primary current A 237
Max. Short Circuit Current KA 19.3
Max. working pressure kN 1.5
Dimensions (LxWxH) mm 1573x1110x2110
