Refrigerator Compressor Upper Case MFDC Welder

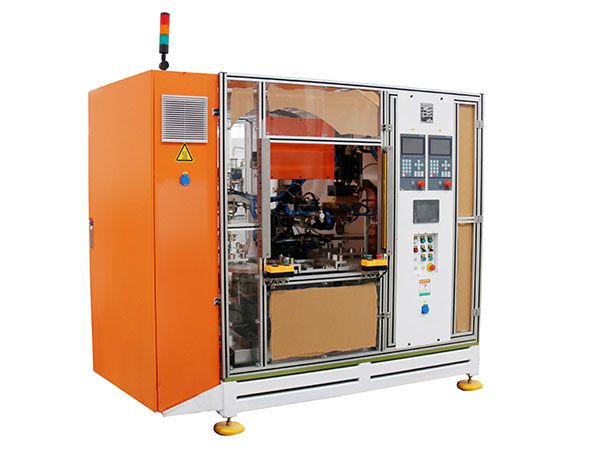

2x220KVA MFDC Automatic Welder for Top Cover DB-440-18020

The MFDC automatic welder for top cover features high welding efficient, high yield rate and rust-proof after welding.

Model # DB-440-18020
Rated capacity KVA 2x220
Power supply V/Φ/Hz 380/3/50
Max. primary current A 225
Max. Short Circuit Current KA 30
Max. working pressure kN 11.8
Dimensions (LxWxH) mm 2260x2190x2070

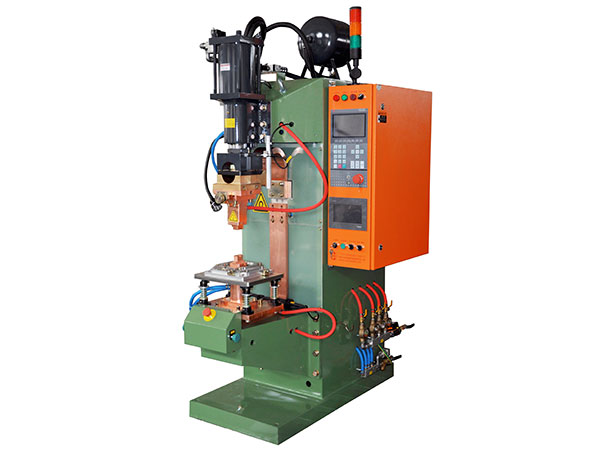

220KVA MFDC Welder for Top Cover DB-220-17037

Our DB-220 MFDC welder for top cover features high welding efficient, high yield rate and rust-proof after welding.

Model # DB-220-17037
Rated capacity KVA 220
Power supply V/Φ/Hz 380/3/50
Max. primary current A 139
Max. Short Circuit Current KA 37
Max. working pressure kN 11.8
Dimensions (LxWxH) mm 1312x842x2092

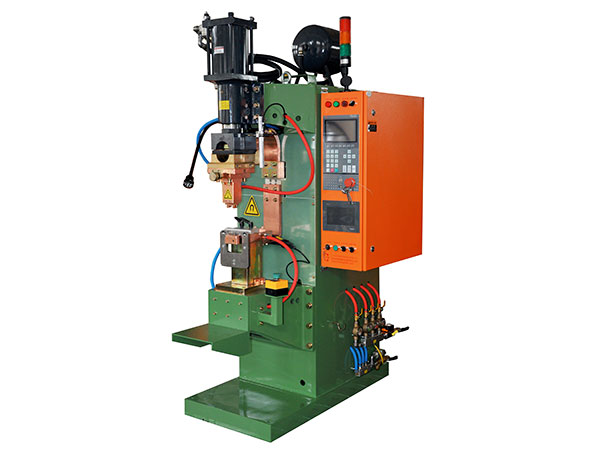

220KVA MFDC Welder for Top Cover DB-220-17036

Our MFDC welder for top cover is specially customized, suitable for welding compressor shell and bracket.

Model # DB-220-17036
Rated capacity KVA 220
Power supply V/Φ/Hz 380/3/50
Max. primary current A 139
Max. Short Circuit Current KA 36
Max. working pressure kN 11.8
Dimensions (LxWxH) mm 1210x842x2092
