Air Conditioner Compressor Shell Welder

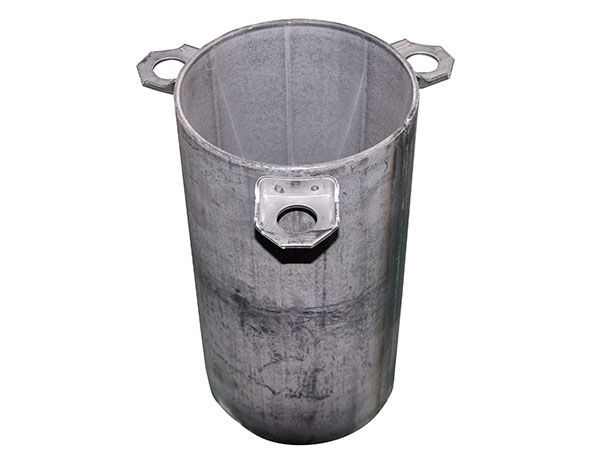

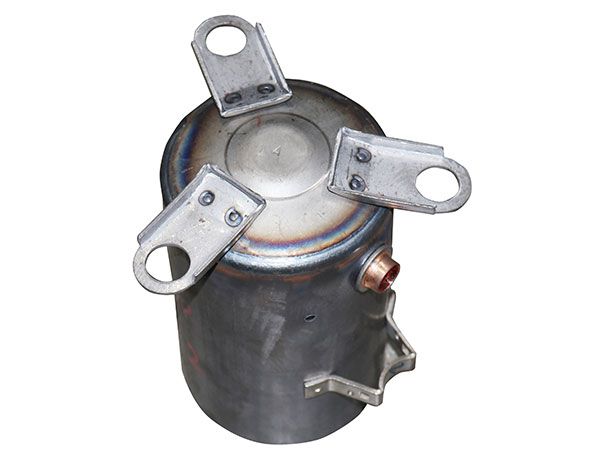

220KVA MFDC Welder for Base Legs DB-220-17050

Inquiry

The MFDC welder for base legs features high welding efficient, high yield rate, good anti-deformation performance and convenient operation.

Model # DB-220-17050
Rated capacity KVA 220
Power supply V/Φ/Hz 380/3/50
Max. primary current A 100
Max. Short Circuit Current KA 40
Max. working pressure kN 11.8
Dimensions (LxWxH) mm 2473x1600x1126

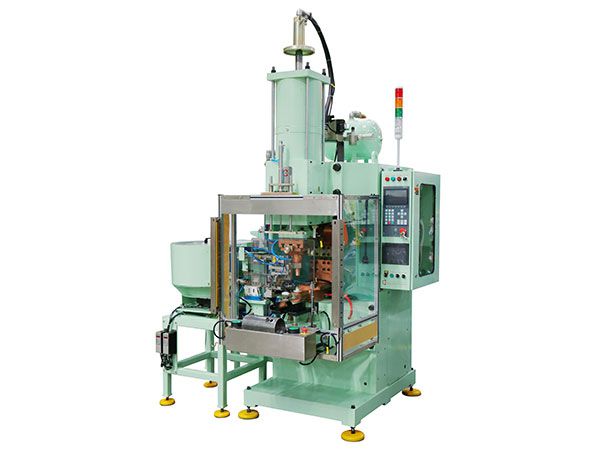

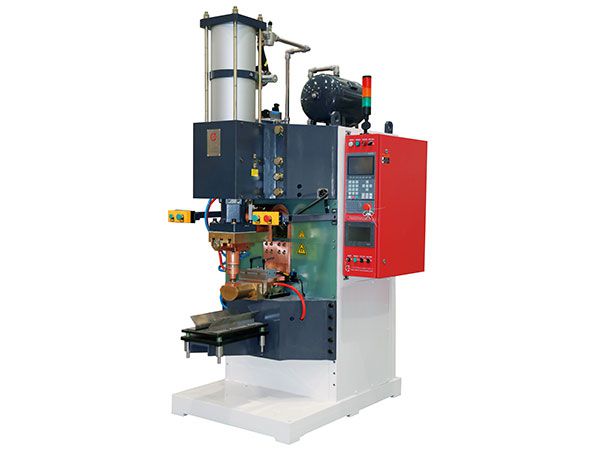

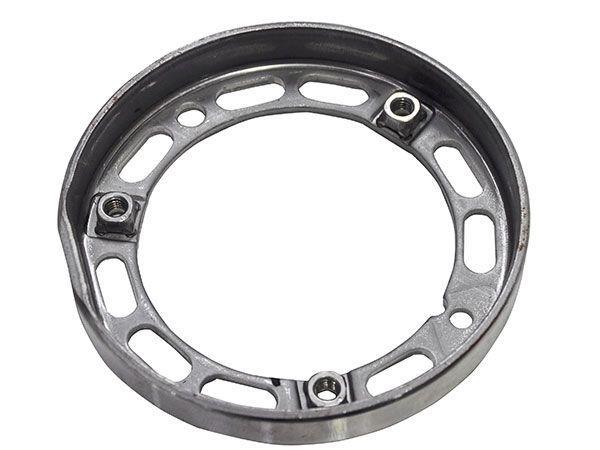

20000J CD Spot/Press Welder for Compressor Bracket Nut DR-20000-19003

Inquiry

The CD spot/press welder for compressor bracket nut applies 3-welding-head structure, able for dealing with 3 nuts at the same time; along with QA system, able for blowing, deslagging and testing; automatic alarm when skips or mistakes occur during welding, which ensures welding quality.

Model # DR-20000-19003
Rated capacity KJ 20
Power supply V/Φ/Hz 380/3/50
Max. primary current A 79
Max. Short Circuit Current KA 130
Max. working pressure kN 24
Dimensions (LxWxH) mm 1620x1828x2382

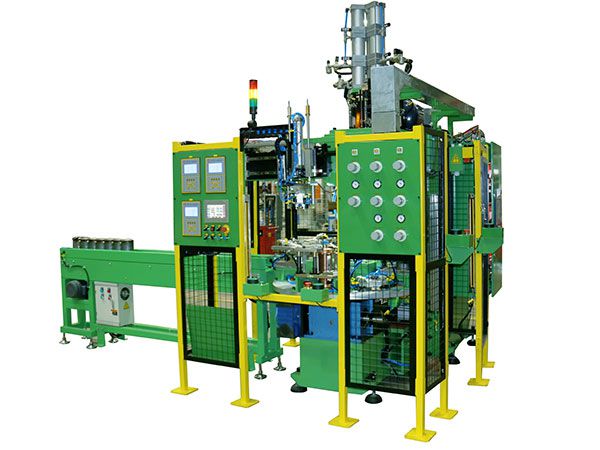

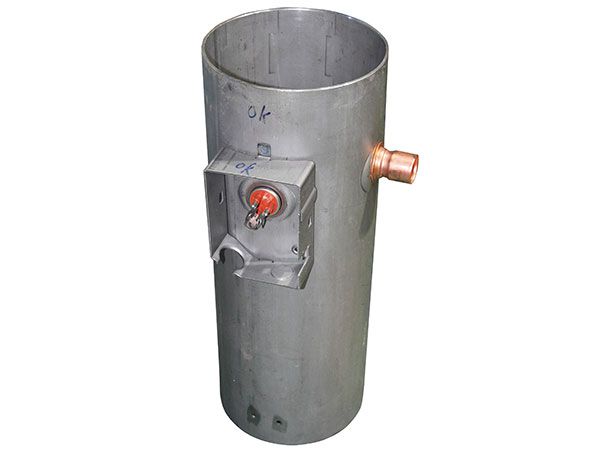

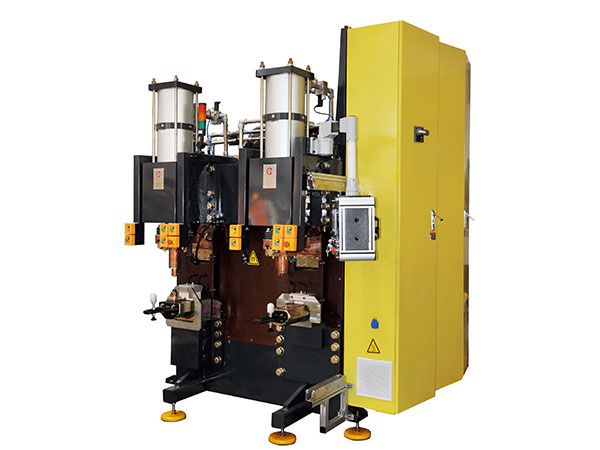

1250KVA MFDC Welder for Fusite & Suck Pipe DB-1250-17003

Inquiry

The MFDC welder with 2 stations equips two operating positions, featuring high welded strength, good airtightness, and elegant look.

Model # DB-1250-17003
Rated capacity KVA 1250
Power supply V/Φ/Hz 380/3/50
Max. primary current A /
Max. Short Circuit Current KA 116
Max. working pressure kN 42.5
Dimensions (LxWxH) mm 2095x2283x2788

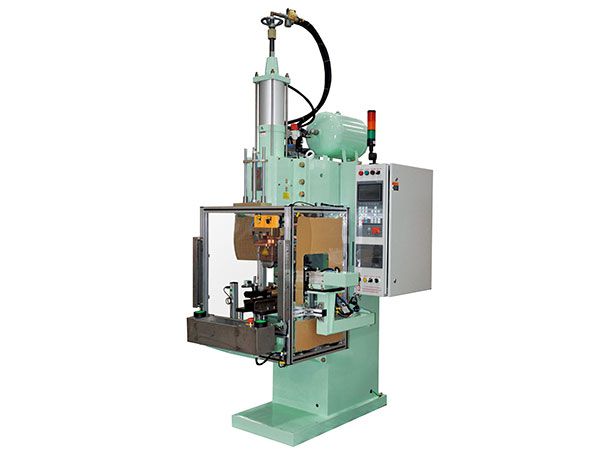

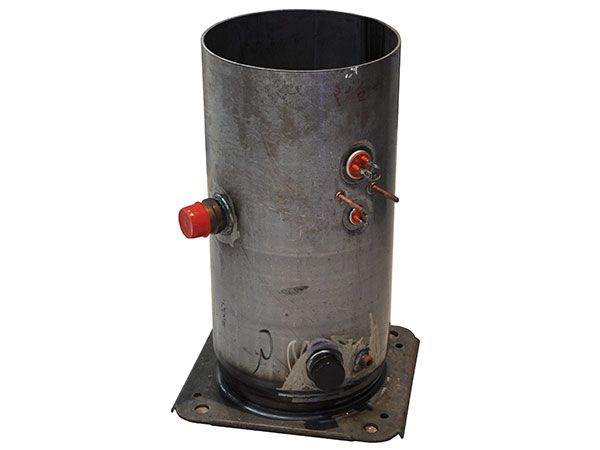

560KVA MFDC Spot/Press Welder for Compressor Feedthrough DB-560-18001

Inquiry
Model # DB-560-18001
Rated capacity KVA 560
Power supply V/Φ/Hz 380/3/50
Max. primary current A 290
Max. Short Circuit Current KA 111
Max. working pressure kN 19.5
Dimensions (LxWxH) mm 3386x1000x2630

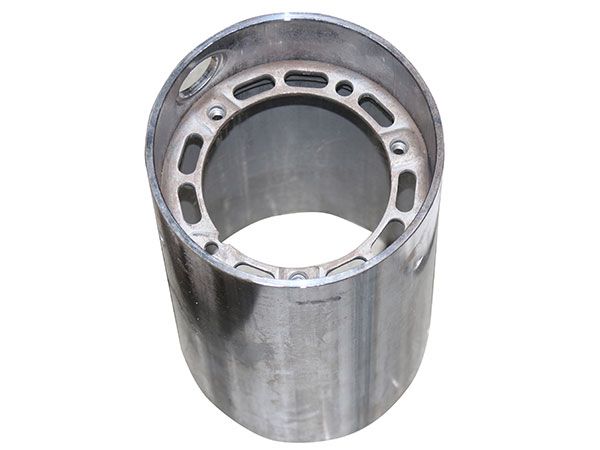

165KVA MFDC Welder for Bracket DB-165-18004

Inquiry
Model # DB-165-18004
Rated capacity KVA 165
Power supply V/Φ/Hz 380/3/50
Max. primary current A 120
Max. Short Circuit Current KA 30
Max. working pressure kN 10
Dimensions (LxWxH) mm 1026x1652x2831

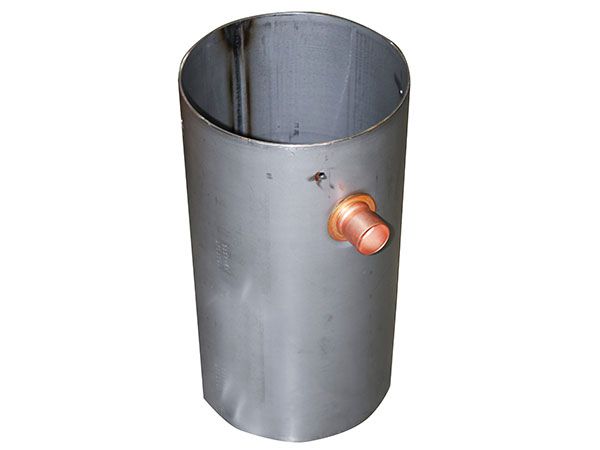

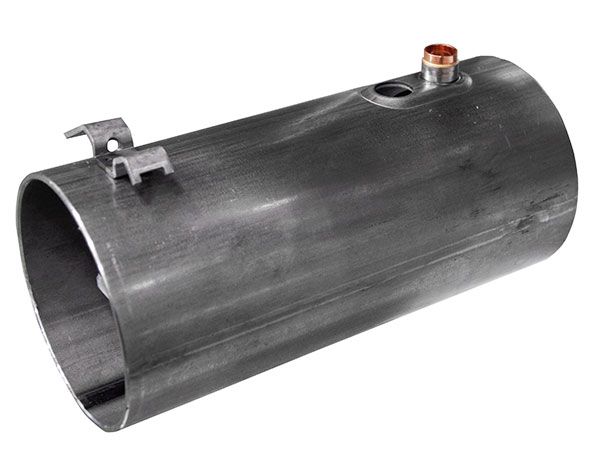

880KVA MFDC Welder for Suction Pipe DB-880-20003

Inquiry
Model # DB-880-20003
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 770
Max. Short Circuit Current KA 110
Max. working pressure kN 35
Dimensions(LxWxH) mm 1960x1786x2700

450KVA AC Welder for Base Legs DN-450-19001

Inquiry
Model # DN-450-19001
Rated capacity KVA 450
Power supply V/Φ/Hz 380/1/50
Max. primary current A 300
Max. Short Circuit Current KA 22
Max. working pressure kN 11.5
Dimensions (LxWxH) mm 3953x2684x2516

3-head Spot Welder for Compressor Frame ZA0-H19002

Inquiry

880KVA MFDC Welder for Suction Pipe DB-880-19006

Inquiry
Model # DB-880-19006
Rated capacity KVA 880
Power supply V/Φ/Hz 380/3/50
Max. primary current A 340
Max. Short Circuit Current KA 111
Max. working pressure kN 24
Dimensions (LxWxH) mm 1380x1400x2580
